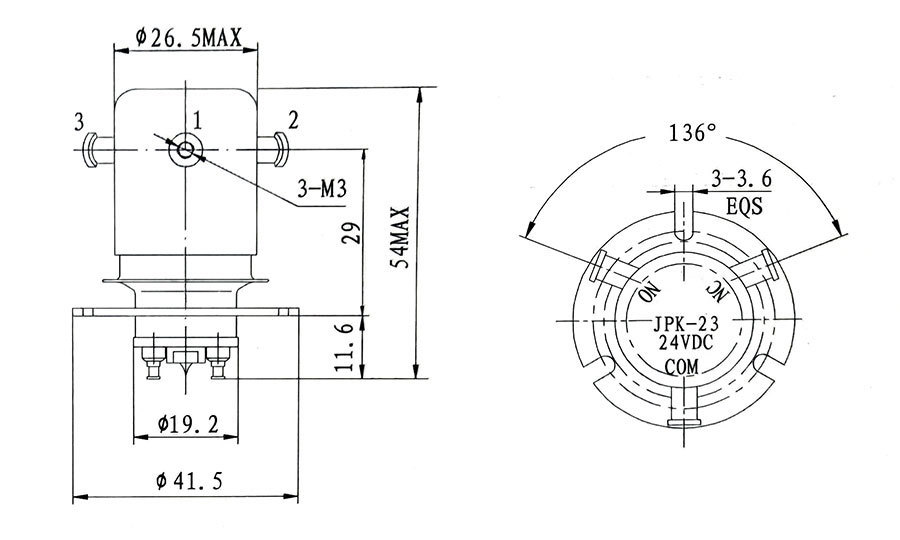

Vacuum Ceramic Relay JPK-23/059 JPK-2/061 type

Vacuum relay is a kind of electronic equipment that uses vacuum tube as the control element. It has unique working principle and remarkable characteristics, and is widely used in various circuits.

Category: Vacuum relay

key word : Vacuum Ceramic Relay JPK-23/059 JPK-2/061 type

Mobile:+86-13903792565

Mobile:+86-13503495123

Message Contact

Product Details

Specification No.		JPK-23/059	JPK-2/061
Contact combination form		1Z	1Z
Test voltage (DC or 50Hz AC peak) kV		15	15
Rated operating voltage (peak) kV	DC or AC 50Hz	12	12
	AC2.5MHz		10
	AC16MHz		8
	AC32MHz		5
Rated carrying current (effective value) A	DC or AC 50Hz	30	50
	AC2.5MHz		30
	AC16MHz		17.5
	AC32MHz		10
Contact resistance (max.) Ω		0.025	0.012
Distributed capacitance (pf)	Disconnected shock room	0.5	0.5
	Between electric shock and enclosure	1	1
Insulation resistance (minimum) MΩ	Disconnected shock room	10000	10000
	Between coil and housing	1000	1000
Action time (max.) ms		18	18
Release time (max) ms		9	9
Temperature range (℃)		-55～ 125	-55～ 125
Impact level (Peak g's)		50	50
Vibration level (Hz)		10~500	10~500
Mechanical life (× 106)		1	1
Nominal weight (g)		74	74

Coil Data

Nominal voltage	(DC)V	220	110	48	27	24	12
pull-in voltage	(Max) V	150	70	30	16	16	8
Release voltage	(Minimum) V	10	2	2	1.5	1.5	0.5
Coil resistance	Ω ± 10%	10000	5400	615	270	180	48
